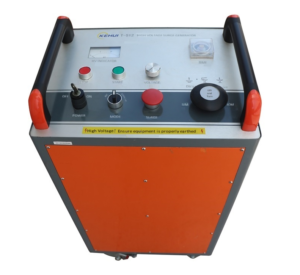

T-S12 High Voltage Surge Generator

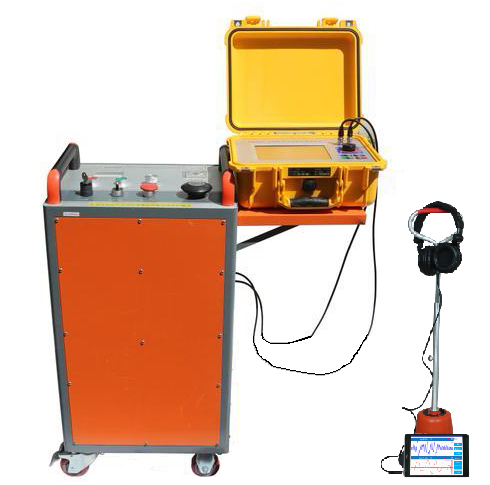

The T-S12 high voltage surge generator, is used for locating high impedance and flashing faults on low voltage distribution cables. It works in conjunction with a cable fault locator (e.g. Kehui T-906) for pre-locating the fault position and then with a pinpointer (e.g. Kehui T-506) to find the precise fault location. It is applicable for different cable fault location techniques, such as the impulse current method (ICM) and the secondary/multiple impulse method (SIM/MIM).

Features

  • High surge voltage up to 12 kV
  • Support Secondary impulse Method (SIM), Multiple Impulse Method (MIM) and Impulse Current Method (ICM)
  • Integral capacitors
  • High surge energy up to 1000J
  • Automatic discharging device
  • Electronically operated surge switch
  • Security control
  • Lightweight and easy to transport

Specifications

Mains supply 220V ±20%
Mains frequency 50/60Hz ±10%
Maximum power consumption 1500W
Output voltage 12kV
Maximum surge energy 720J or 1000J (optional)
Impulse cycle 4 – 15s adjustable
DC testing 0 – 12kV
Maximum current 160mA
3 Operating Modes Single pulse
  Cycle pulse
  DC Output
Operating temperature -20 to +50oC
Weight 45kg (55kg for 1000J version)
Dimensions (W x H x D) 420 x 330 x 830mm

Delivery includes:

  • Mobile High Voltage Surge Generator
  • Carrying Bag for Cables
  • Mains Connection Cable
  • HV Connection Cable
  • Grounding spike
  • Discharge Rod
  • Discharge Rod Lead
  • User Manual
