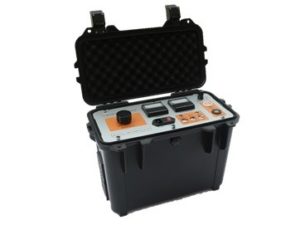

T-100C High Voltage Signal Generator

The T-100C can be used to perform DC Voltage Withstand testing for high voltage cable sheaths. It can also be used in conjunction with the TH200 to perform pre-location of cable sheath faults. Once the pre-location of the fault has been made, the T-100C is used together with the T-KF100 to pinpoint the position of the fault.

Features

  • High voltages up to 10 kV
  • Voltage is adjustable continuously
  • kV-meter direct reading • mA-meter direct reading
  • Security control
  • Rugged design, easy to carry
T-100C Technical Data
Output surge voltage 0 – 10kV
Output current 0 – 80mA continuously adjustable
Mains supply 220v ± 10%, 50Hz ± 10%
Maximum power consumption ≤ 800W
Working temperature -10°C to +50°C
Dimensions: 445mm x 335mm x 310mm
Weight: 12kg
Ingress Protection IP67 (Lid closed)
